PYK105 Industrial Intelligent Pressure Controller
Φ 100 Standard Instrument Installation
四路繼電器輸出,繼電器容量24V1.2A/220V3A
4-Bit LED shows current pressure value, no error in display value
4-20mA模擬量
Control points can be set at random on site between zero and full point
RS485信號(hào)輸出,可組網(wǎng)(可選)

Overview

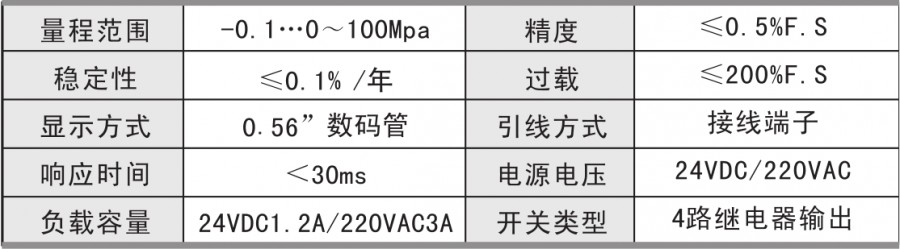

Specification

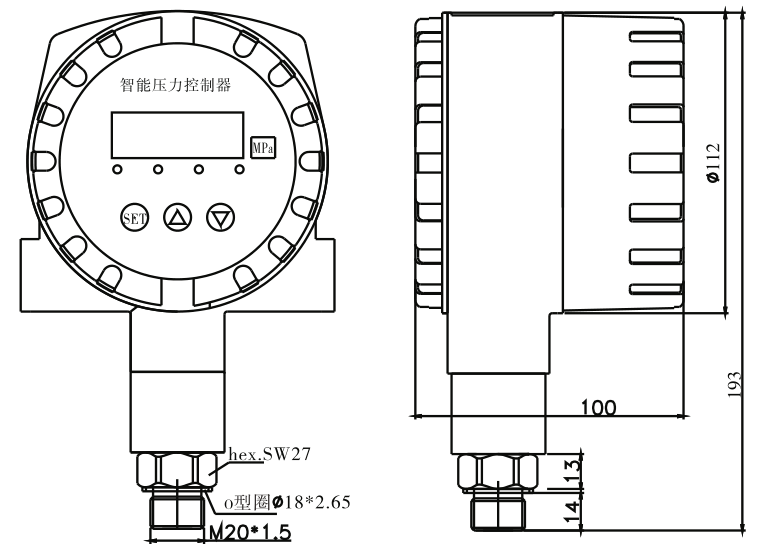

Structure

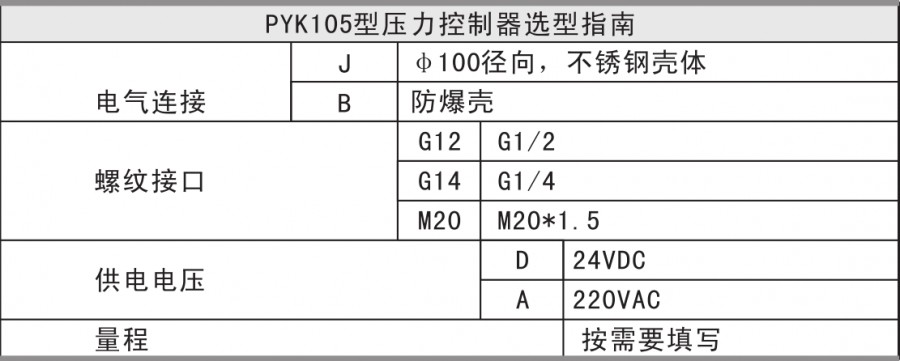

Model Selection


The PYK105 intelligent pressure controller is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output, and control. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the pressure of the fluid medium is measured and controlled, and the output(4-20mA) and RS485 network can be transmitted.
